Find a Post Office

Code Samples for Find a Post Office: Java (.zip) | PHP (.zip) | C# (.zip)

Get Post Office Detail – SOAP

Summary

Name:	Get Post Office Detail
Reason to Call:	To retrieve additional information about a specific Post Office
Input:	Office Identifier (office-id)
Output:	Detailed information on the specified Post Office (hours of operation, etc.)
Error Examples:	Invalid Office Id
Typical Prior Call:	Get Nearest Post Office
Version history:	Release notes

Call Details

WSDL:	postoffice.wsdl
Endpoint (Development):	https://ct.soa-gw.canadapost.ca/rs/soap/postoffice
Endpoint (Production):	https://soa-gw.canadapost.ca/rs/soap/postoffice
Namespace:	http://www.canadapost.ca/ws/soap/postoffice
Operation:	GetPostOfficeDetail

SOAP Body

This section describes the XML input elements to this service. For the hierarchical structure, see the XML diagram.

Get Post Office Detail – Request Elements
Element Name	Type	Required / Optional	Description
get-post-office-detail-request	complex	required	The top level XML element for the request input information.
locale	simple	optional	Indicates your language preference for receiving error messages. EN = English FR = French If no value is provided, the default language is English.
office-id	simple	required	Office identifier for the Post Office for which information is sought. Leading zeroes are significant.

Request – XML Diagram

Get Post Office Detail – Structure of the XML Request

Response Details

Response – Elements

The following table describes the XML elements in the response to Get Post Office Detail. For the hierarchy of the response, see the
XML diagram.

Get Post Office Detail – Response Elements
Element Name	Type	Description
get-post-office-detail-response	complex	The top level of the XML structure for the response. It will either contain the results of a successful completion or the error structure.
post-office-detail	complex	This structure represents the information about the requested Post Office.
address	complex	This xml element structure represents the information on the address of the Post Office.
city	simple	Municipality in which the Post Office is located.
latitude	simple	The latitude of the Post Office.
longitude	simple	The longitude of the Post Office.
postal-code	simple	The Postal Code of the Post Office.
province	simple	The province where the Post Office is located.
office-address	simple	Street number and name for a Post Office.
location	simple	The general location or area of a Post Office. This is used to distinguish among various Post Office locations that have similar names.
name	simple	The franchise name assigned to Post Office, if it is a franchise.
office-id	simple	The internal Canada Post assigned unique identification number for the Post Office. Note: leading zeroes are significant and should be included.
bilingual-designation	simple	true \| false True indicates that the Post Office provides bilingual services (English and French). False indicates no designation for the provision of bilingual services. False does not indicate a specific language of service.
hours-list	complex	Contains information regarding the hours of operation of the Post Office. Occurs 1 … 7 times, with each occurrence representing the hours of operation of a single day of the week.
day	simple	Indicates which day of the week the corresponding occurrence of hours-list represents. Day 1 is Sunday and Day 7 is Saturday
time	simple	The opening and closing times of the Post Office. Occurs 1 .. 4 times. The first occurrence of time is the first opening time of the day. The second occurrence (if present) represents the first closing time of the day. (If absent, then the store remains open to the end of the day) The third occurrence (if present) represents a second opening of the day. The fourth occurrence (if present) represents the second closing time of the day. (If absent, then the store remains open to the end of the day). e.g., if there are 4 occurrences of the time with the values 09:00, 16:00, 19:00, 23:00, then the store would be open from 9 a.m. – 4 p.m. and 7 p.m. – 11 p.m.

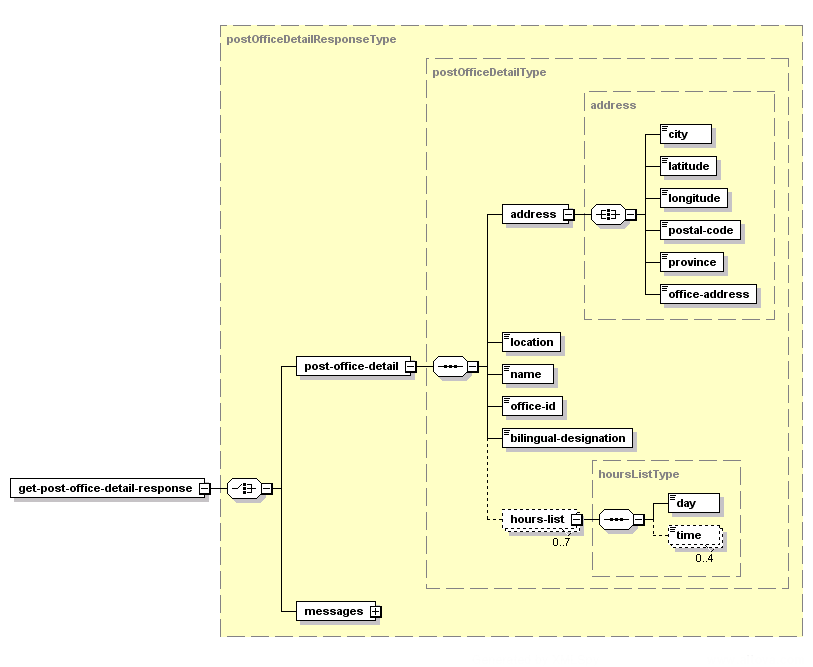

Response – XML Diagram

Get Post Office Detail – Structure of the XML Response

View full-size image

Response – Possible Error Responses

The response to error conditions for this web service follows the standard SOAP error response approach used for all Canada Post web services. For more information, see SOAP Fundamentals of Canada Post Web Services.

Possible error messages for this service include the following:

<code>	<description>
e00010	Invalid office-id

Examples

Sample SOAP XML Request – Get Post Office Detail




		<get-post-office-detail-request>
		<locale>EN</locale>

		<office-id>102978</office-id>


		</get-post-office-detail-request>



  Sample SOAP XML Response – Get Post Office Detail



		<get-post-office-detail-response>

		<post-office-detail>

		<address>

		<city>GATINEAU</city>

		<latitude>45.5856</latitude>

		<longitude>-75.4132</longitude>

		<postal-code>J8L1N0</postal-code>

		<province>QC</province>

		<office-address>563 RUE BELANGER</office-address>


		</address>

		<location>BUCKINGHAM PO</location>

		<name>DÉPANNEUR MAUZEROLL</name>

		<office-id>0000319376</office-id>

		<bilingual-designation>true</bilingual-designation>

		<hours-list>

		<day>1</day>

		<time>08:00</time>

		<time>00:00</time>


		</hours-list>

		<hours-list>

		<day>2</day>

		<time>08:00</time>

		<time>00:00</time>


		</hours-list>

		<hours-list>

		<day>3</day>

		<time>08:00</time>

		<time>00:00</time>


		</hours-list>

		<hours-list>

		<day>4</day>

		<time>08:00</time>

		<time>00:00</time>


		</hours-list>

		<hours-list>

		<day>5</day>

		<time>08:00</time>

		<time>00:00</time>


		</hours-list>

		<hours-list>

		<day>6</day>

		<time>08:00</time>

		<time>00:00</time>


		</hours-list>

		<hours-list>

		<day>7</day>

		<time>08:00</time>

		<time>00:00</time>


		</hours-list>


		</post-office-detail>


		</get-post-office-detail-response>
